RadioMaster RP3-H: Tiny Titan of ELRS, Nano Receiver Powerhouse!
Alright, buckle up buttercup, because we're not just selling you *something* we're selling you an experience. Think less "product" and more "portal to awesome." This isn't just about owning it, it's about *feeling* it. Maybe you're the adventurous type, craving a touch of the wild. Or perhaps you're a connoisseur of cool, seeking that little something to make your everyday sparkle. Whatever your vibe, this right here is your secret weapon. It's got personality, it's got flair, and let's be honest, it's got that "wow" factor you've been searching for. Get ready to turn heads, spark conversations, and generally just *own* it. Seriously, what are you waiting for. Grab yours now before they're gone, because let's be real, everyone else wants one too. You deserve it.

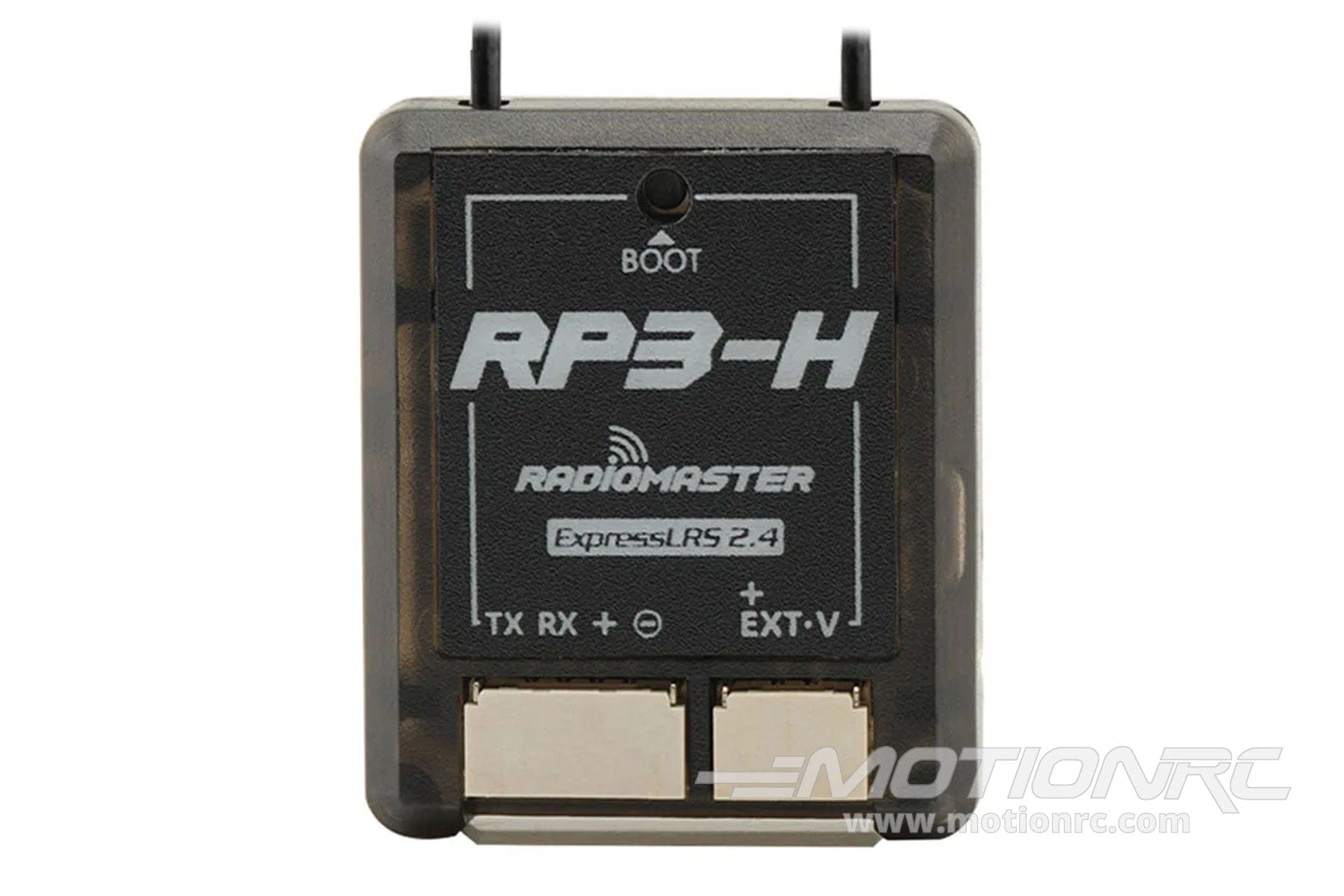

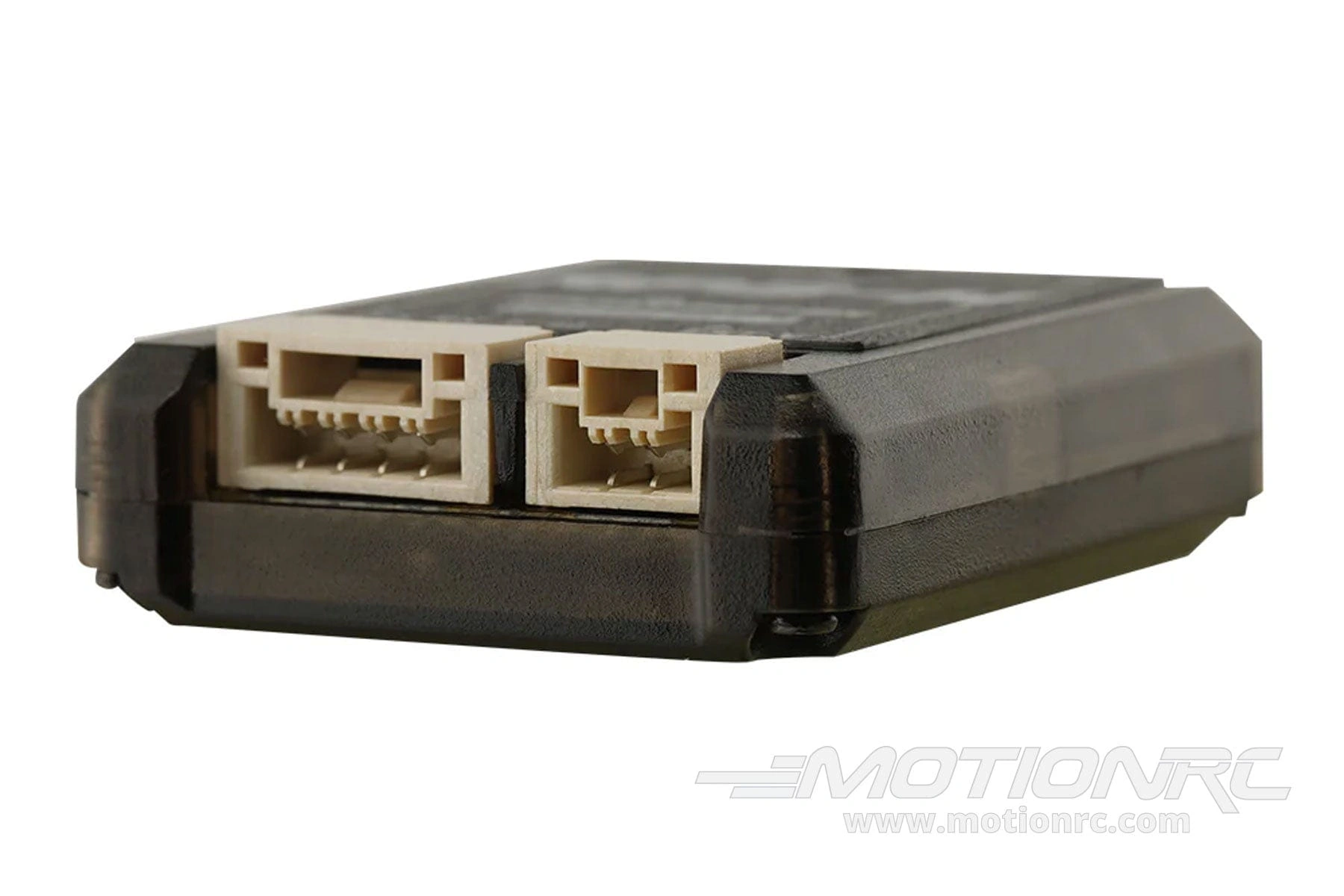

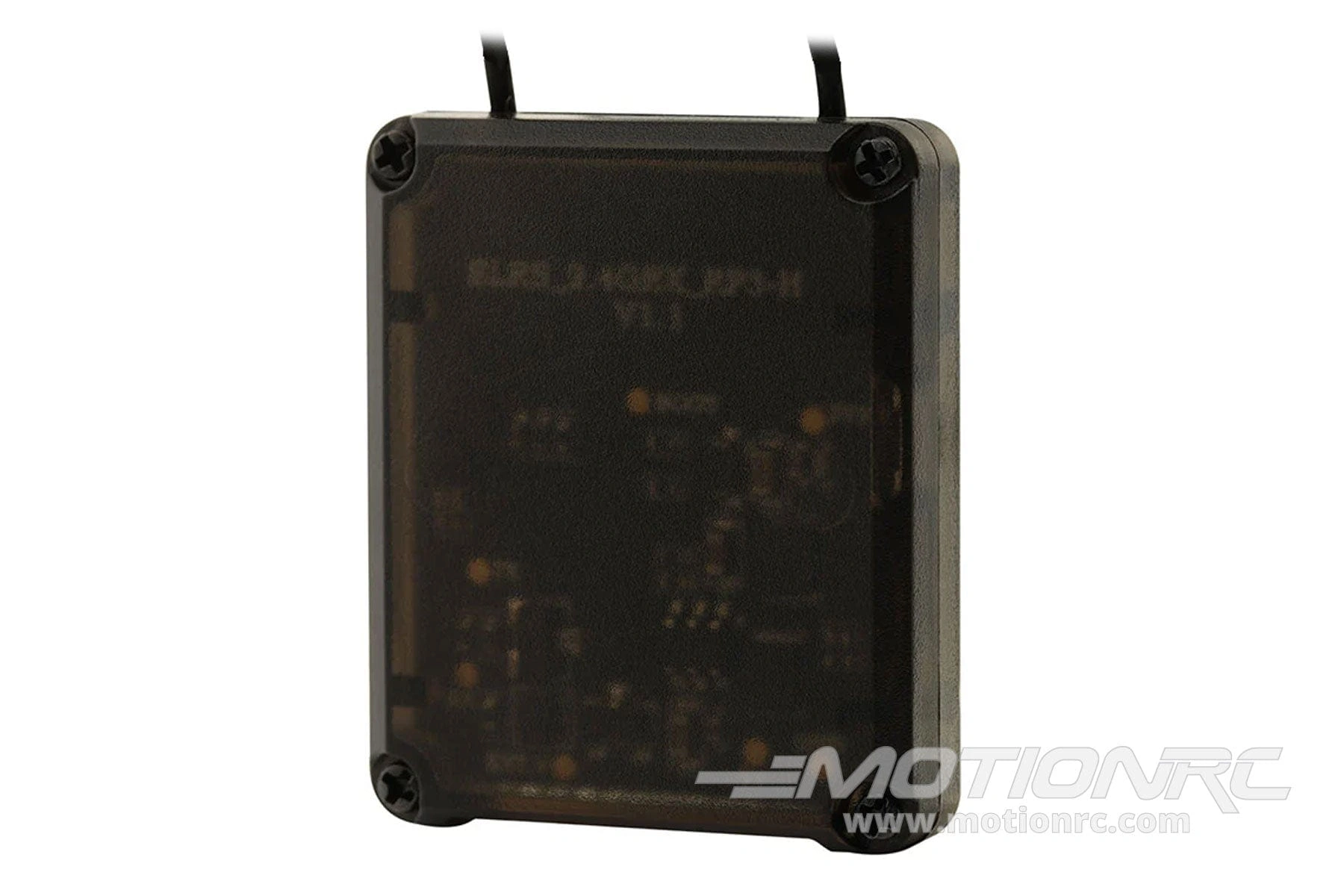

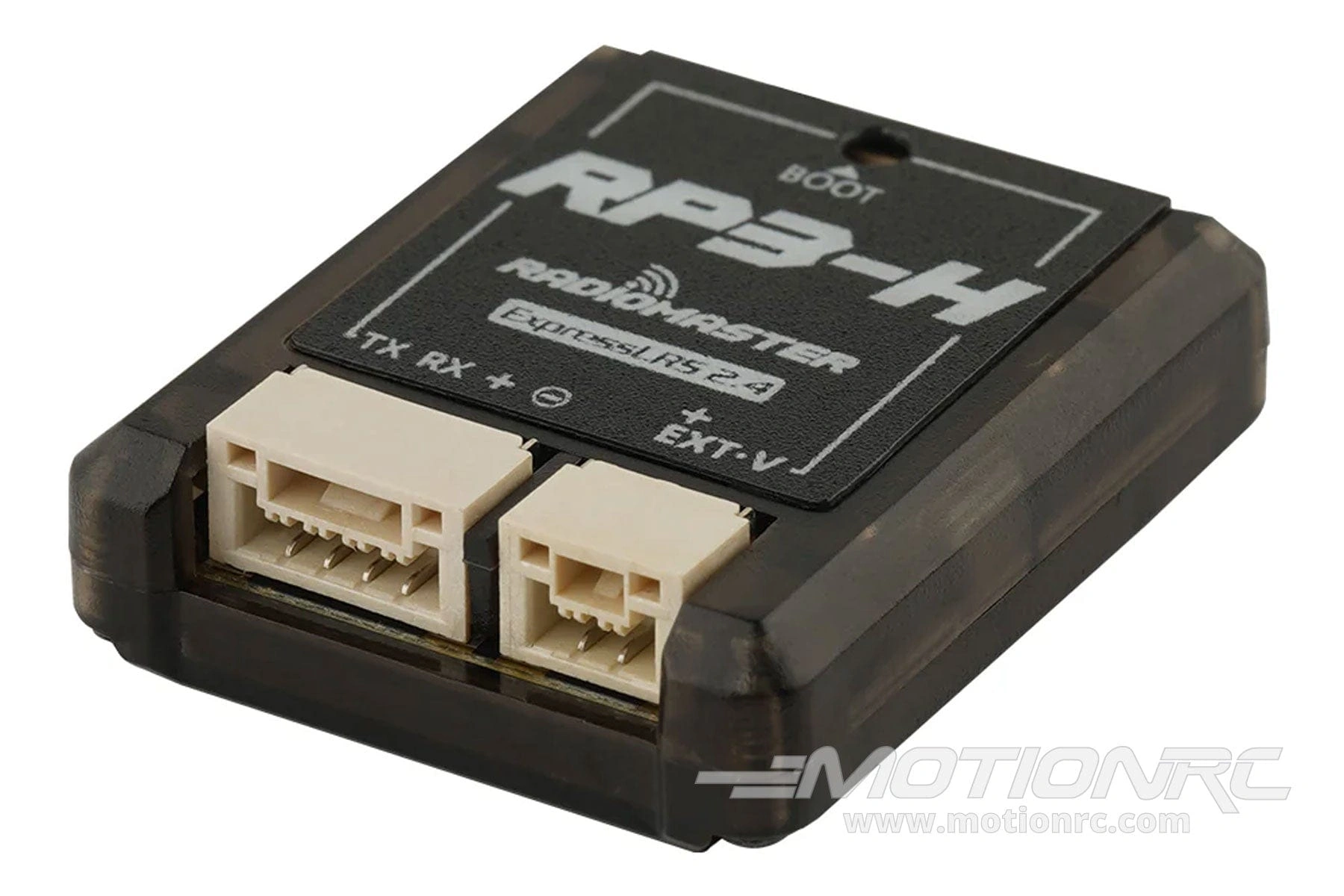

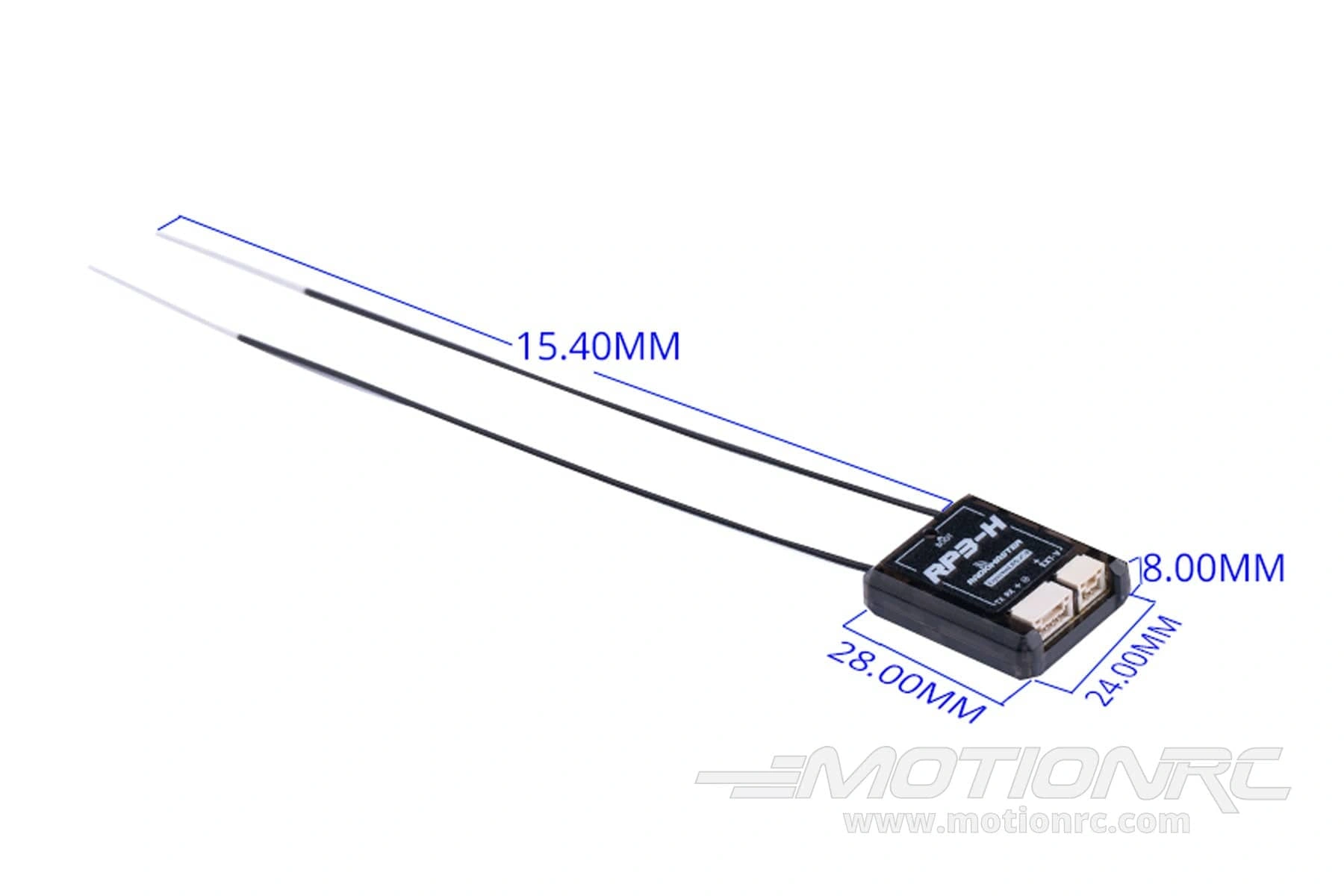

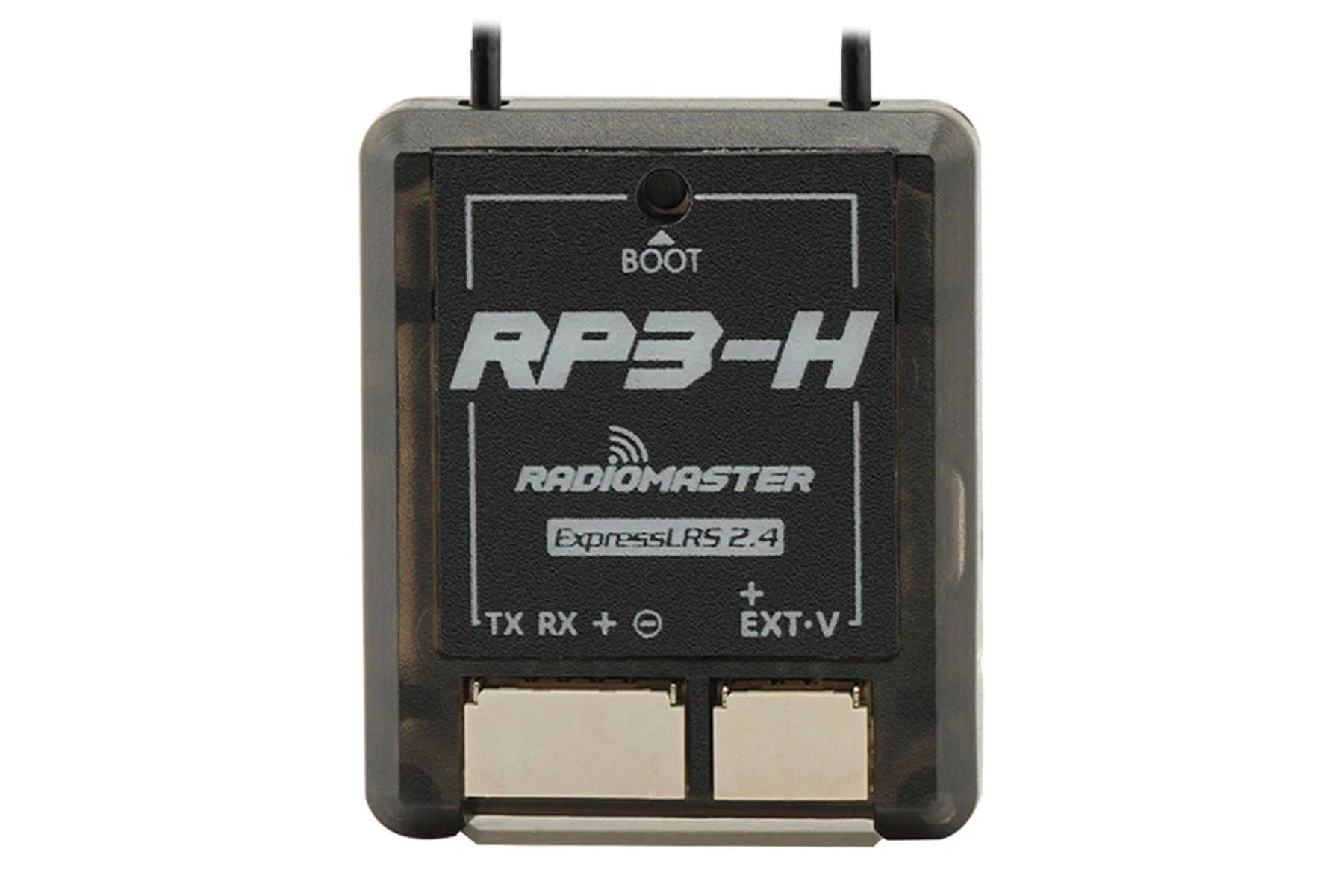

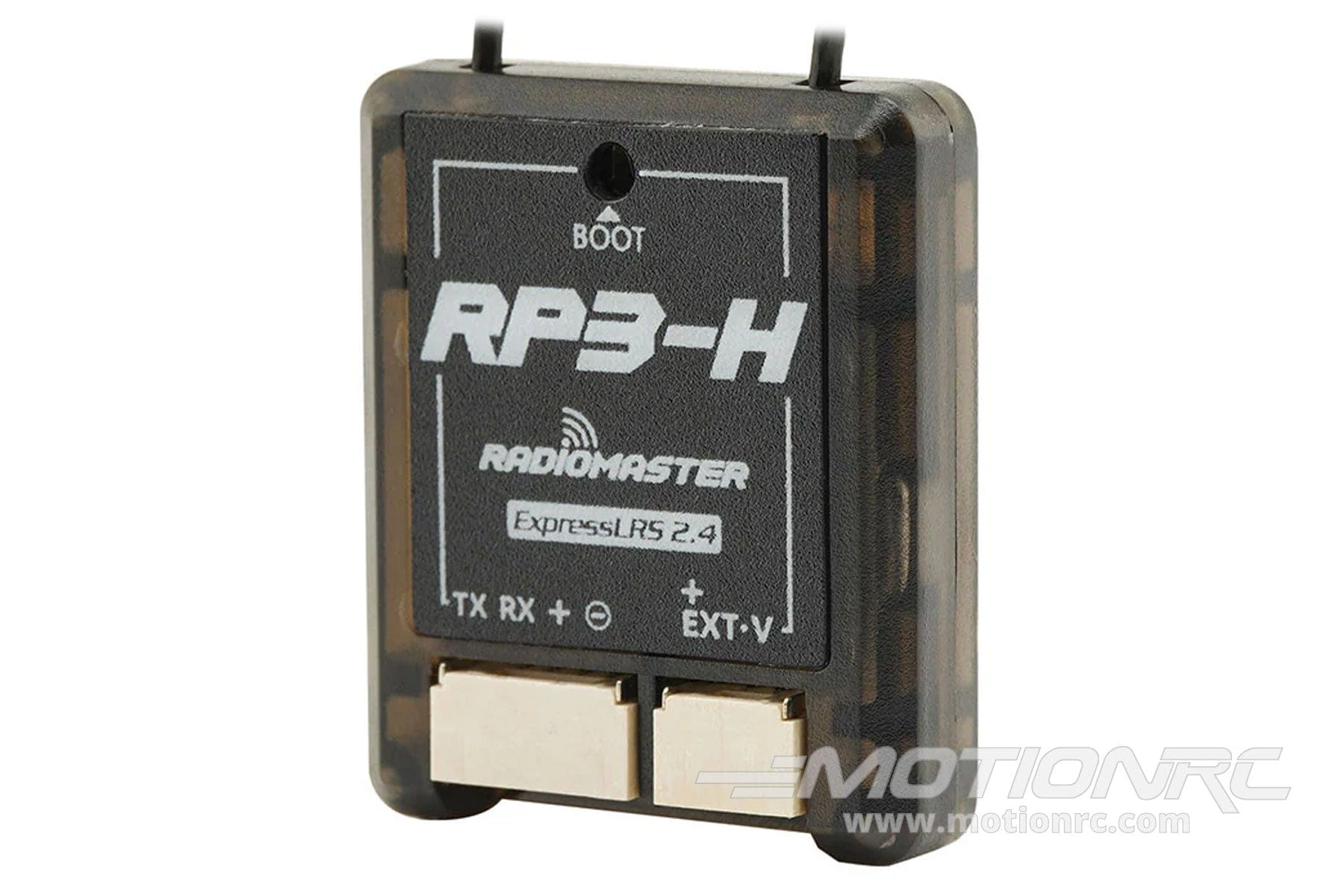

RP3-H ELRS (LBT) Nano Receiver from RadioMaster - HP0157-0088-LBT
The RP3-H ExpressLRS (ELRS) receiver is engineered specifically for the Nexus Helicopter Flybarless control unit and is compatible with all CRSF/S.BUS-enabled flight controllers. It features a built-in TCXO and a robust integrated housing, making it ideal for installation in modern helicopter frames. This receiver ensures reliable, stable, and precise signal reception, enhancing your flying experience and delivering exceptional performance even in challenging conditions. Additionally, the RP3-H includes an Ext-V telemetry input, allowing compatibility with older ESCs that lack battery voltage telemetry through the control unit.
To boost telemetry performance, the RP3-H employs the Skyworks SKY66112 power amplifier, which provides up to 100mW of telemetry power and supports antenna diversity through antenna switching. Built around the ESP8285 MCU and SX1281IMLTRT RF chip, it offers Lora and FLRC 2.4GHz RF links that deliver outstanding range and low latency. Plus, with built-in WiFi, you can update the firmware directly on your aircraft without needing to remove the receiver.
*ELRS LBT (Europe) version is pre-installed with ExpressLRS CE EU domain LBT FW.
Features:
- Ideal for helicopters and any application requiring a robust cased serial receiver
- Easy plug-and-play setup with solder-free RP3-H ExpressLRS receivers, compatible with the NEXUS Heli flight controller (HP0157-0087)
- Enhanced PCB design for superior heat dissipation
- Integrated LNA for improved receiver range
- Power amplifier (PA) for extended telemetry range
- Antenna diversity to enhance signal stability and overall range
- Features a built-in TCXO (temperature compensated crystal oscillator)
- Automatically identifies voltage telemetry from external battery voltage or receiver battery/ESC BEC voltage
- Fully compatible with all 2.4GHz ExpressLRS modules and transmitters that include 2.4GHz ExpressLRS functionality
Includes:
- RadioMaster RP3-H ELRS (LBT) Nano Receiver
- 2x 150mm IPX1 2.4GHz T antenna (installed)
- JST-GH CRSF 4 wire pigtail
- JST-GH 4 wire to JST-GH CRSF cable
- JST-GH 4 wire to single servo pin (single Dupont connectors)
- Voltage telemetry wire
- Quick start guide
Requires:
- ELRS compatible transmitter
